TOMEI

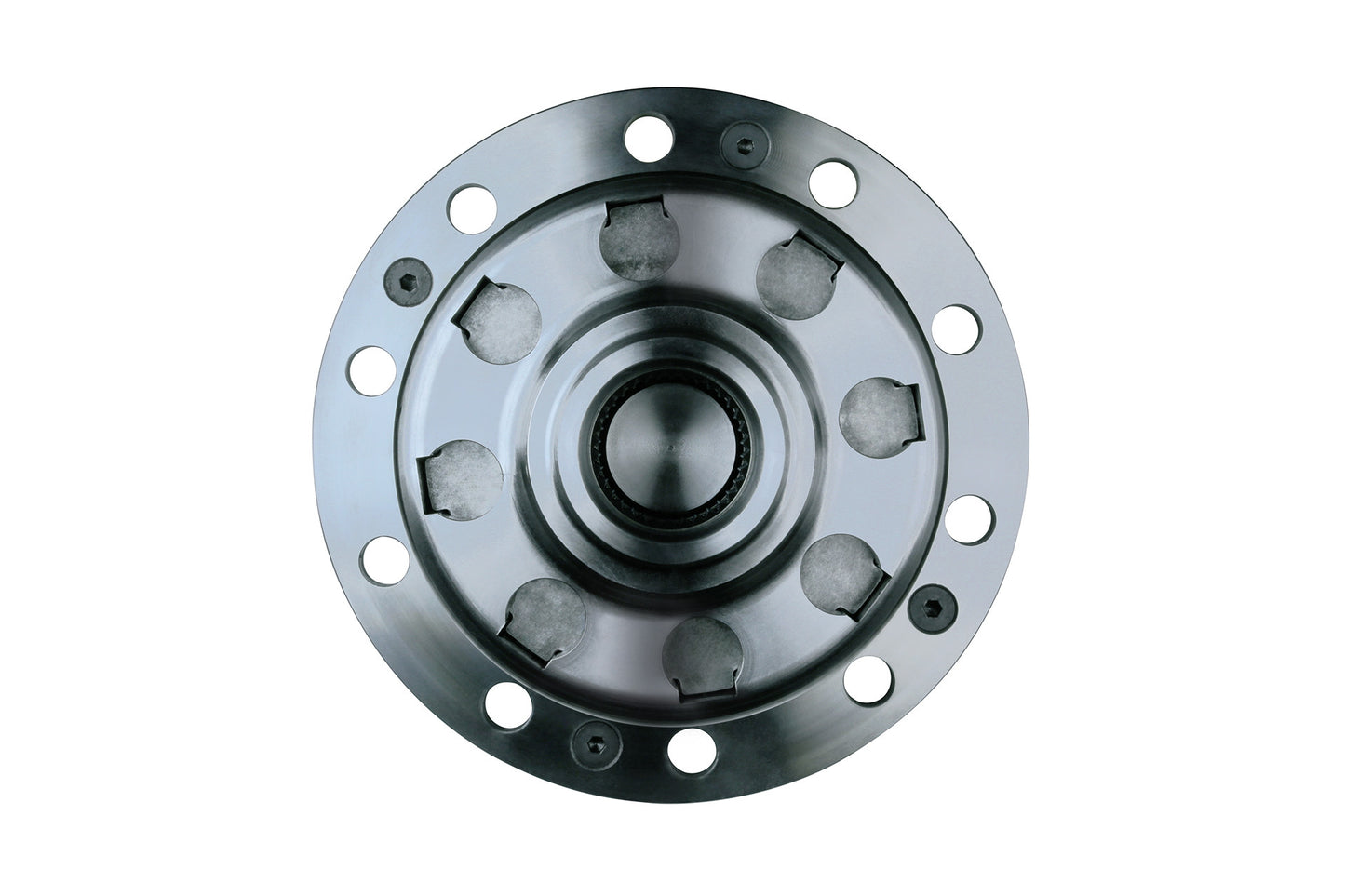

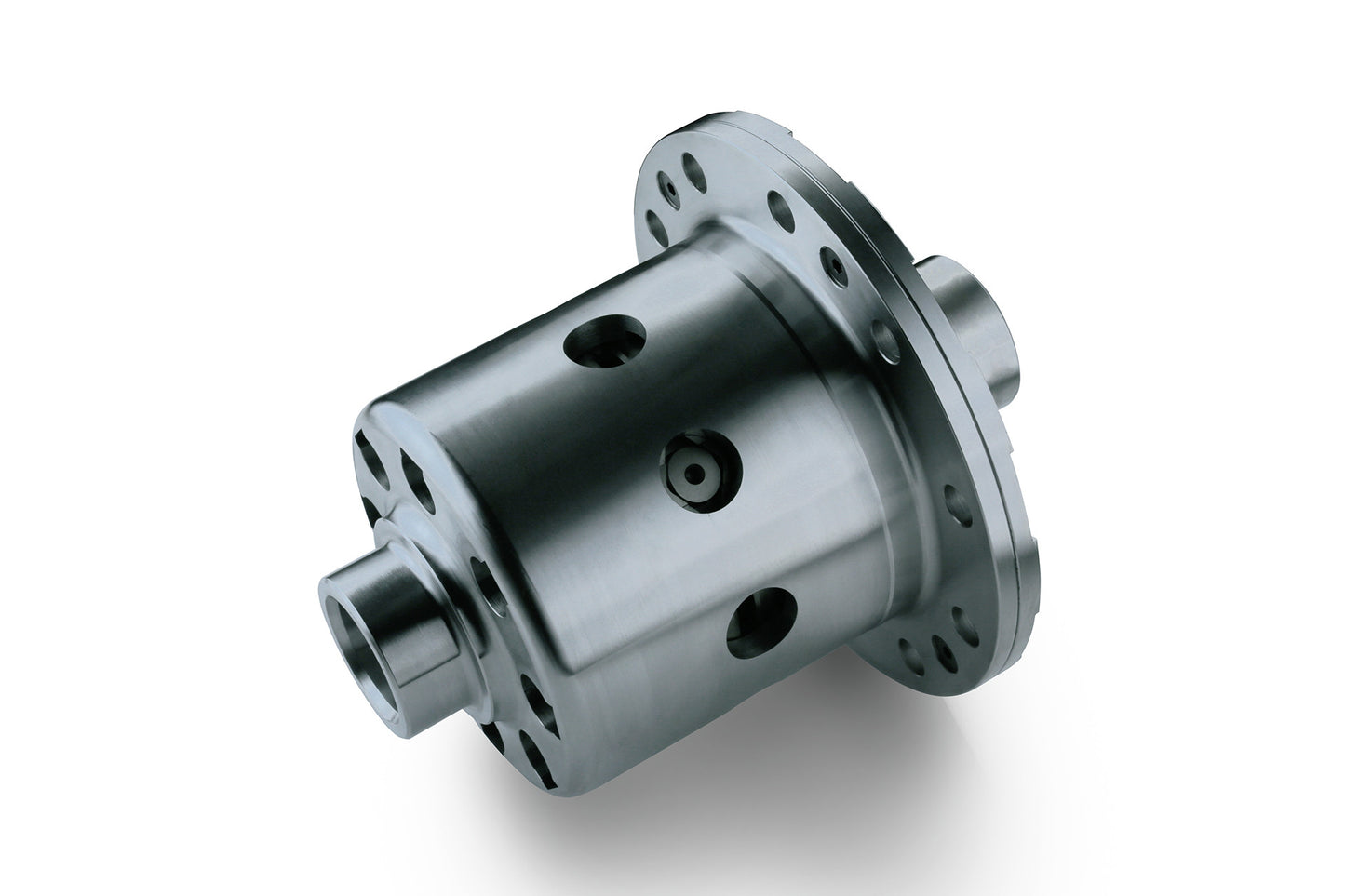

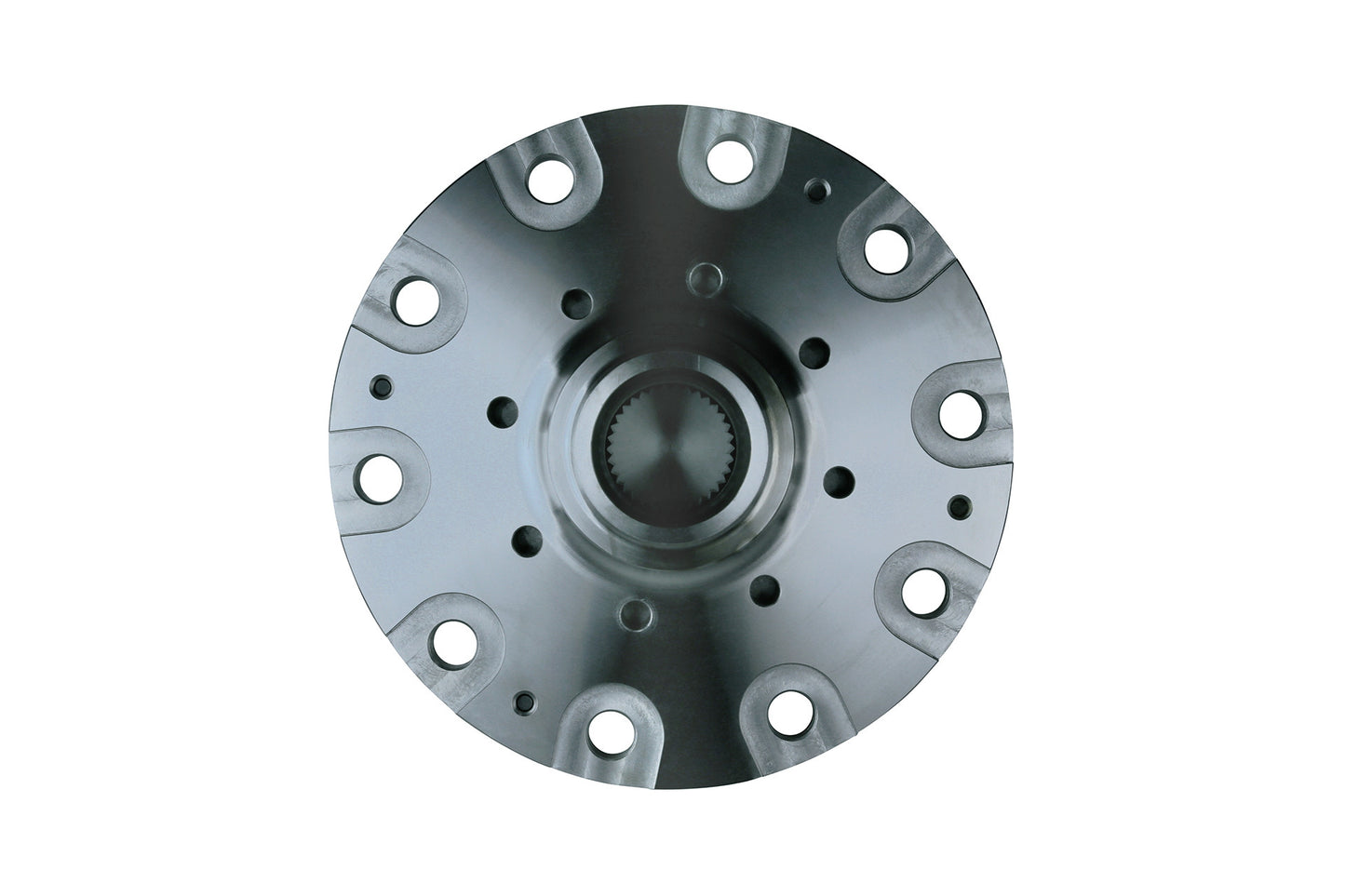

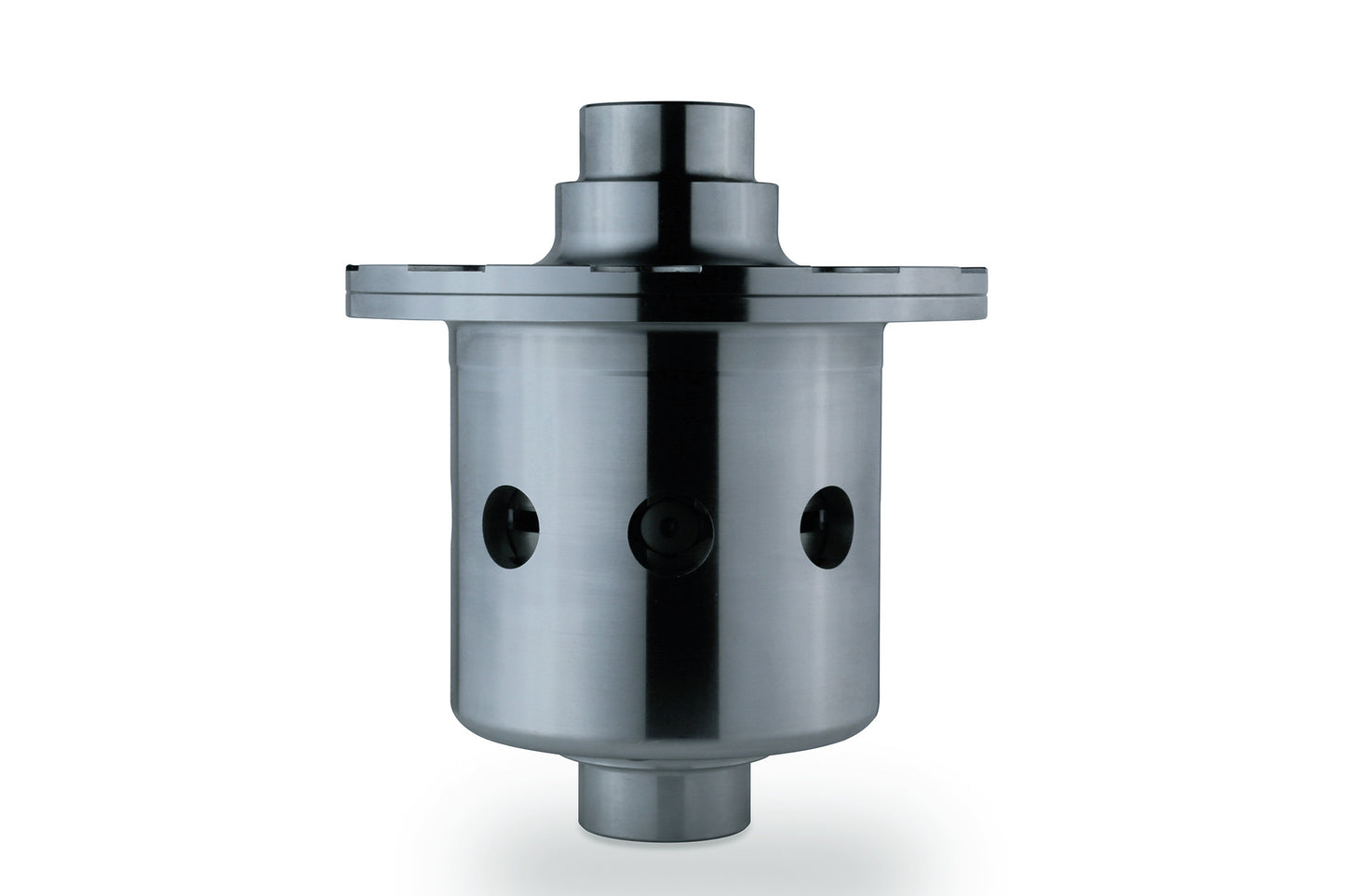

TOMEI TECHNICAL TRAX ADVANCE 2WAY LSD FORD MUSTANG S550/S650 Super 8.8" FA2
TOMEI TECHNICAL TRAX ADVANCE 2WAY LSD FORD MUSTANG S550/S650 Super 8.8" FA2
Regular price
$1,490.00 USD
Regular price
Sale price
$1,490.00 USD
Unit price
/
per
Couldn't load pickup availability
- Dramatically improved traction
- Sharper cornering performance
- Shorter lap times on track
- Enhanced straight-line stability for street use
- Greater control in drifting scenarios

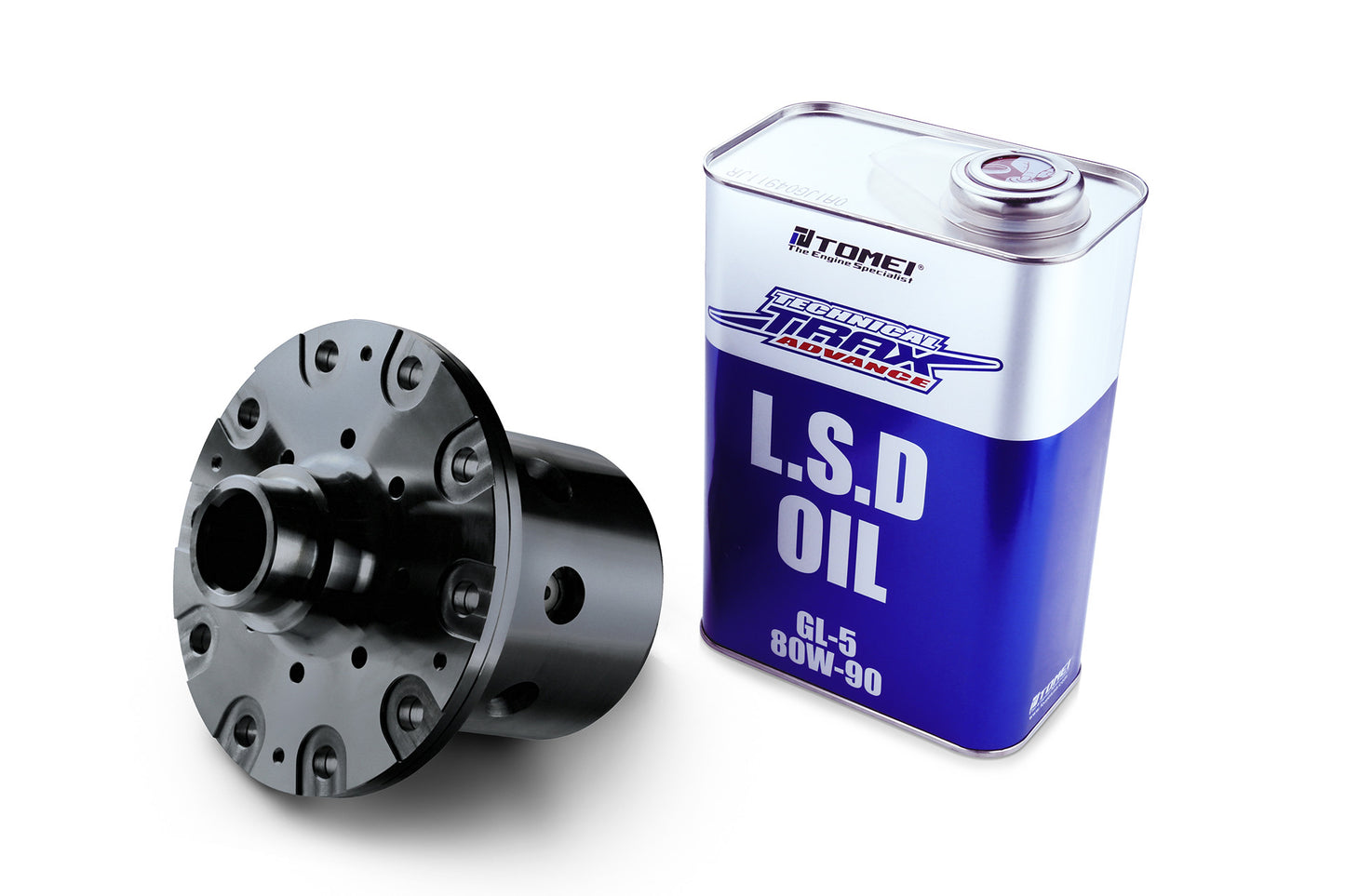

- Gear oil included!
The biggest leap forward in the 6th generation Mustang lies in its Independent Rear Suspension (IRS). To fully unlock the benefits of this configuration, precise rear wheels control is essential. Installing the Technical Trax L.S.D. transforms your Mustang.
TOMEI is proud to release the TECHNICAL TRAX L.S.D., developed specifically for the S550 Mustang (2015–2023) and S650 Mustang (2024+).
Whether you’re driving the EcoBoost 2.3L Turbo, the mighty 5.0L V8 GT, Mach 1, or the naturally aspirated 5.2L V8 GT350—this L.S.D. is built to deliver authentic performance for every S550/S650 owner seeking true rear-wheel-drive control.
APPLICATIONS:
| MAKER | MODEL YEAR |
MODEL | ENGINE | OEM DIFF | TRANS- MISSION |
| FORD | 2015- 2023 |
MUSTANG S550 |
2.3L ECO BOOST I4 | 3.31 Traction-Lok LSD 3.55 Traction-Lok LSD 3.73 Torsen LSD (3.15 Traction-Lok LSD is not Compatible) |
MT/AT |
| 3.7L Ti-VCT V6 | |||||
| 5.0L Ti-VCT V8 | |||||
| 5.2L Ti-VCT V8 | |||||
| 2024+ | MUSTANG S650 |
2.3L ECO BOOST I4 | 3.55 Traction-Lok LSD 3.73 Torsen LSD (3.15 Traction-Lok LSD is not Compatible) |
||
| 5.0L Ti-VCT V8 | |||||
| 5.0L COYOTE V8 |
For full technical data click here.
| TYPE | PCD | DISC | SPRING | Size & No. of Ring Gear Bolts | No. of Serration Teeth(T) | Flange In Dia.(Φ) | Initial Torque Pre Setting (kg.m) | Super High Initial | Pressure Ring Ring Cam Angle (°) |
||||||
| Ext Dia. | No. (In Dia.) | No. (Ex Dia.) | Thick-ness | No. Ex Teeth | No. In Teeth | No. Teeth N/A | No. Teeth N/A Strengthe-ning | ||||||||
| FA2 | 160 | 106 | 8 | 8 | 1.7 | 2 | 0 | 0 | N/A | Φ12.7(10) | 34T | 37 | 9-11 | ◯ | 60ｘ60 |
| FA1 | 40ｘ30 | ||||||||||||||
| parts # | TC101A-FRFA2 |
|---|---|
| msrp | $1,490.00 |
| engine | FORD ECOBOOST, FORD 3.7 CYCLONE V6, FORD 5.0 COYOTE V8, FORD 5.2 VOODOO V8 |
| model | FORD S550 MUSTANG, FORD S650 MUSTANG |
| main category | DRIVE TRAIN |
| sub category | LSD |
| shipping size | 14 x 11 x 12 inch / 34 x 27 x 28 cm |
| shipping weight | 34 lbs / 16 kg |
